Ultrasound-Guided Saphenous Nerve Block

Figure 1: Needle insertion to block the saphenous nerve at the level of the mid thigh (left) or below the knee (right).

 Indications: saphenous vein stripping or harvesting, supplementation for medial foot/ankle surgery in combination    with a sciatic nerve block

 Transducer position: transverse on anteromedial mid thigh or below the knee at the level of the tibial tuberosity,    depending on the approach chosen (proximal/distal).

 Goal: local anesthetic spread lateral to the femoral artery and deep to the sartorius muscle or more distal, below     the knee, adjacent to the saphenous vein.

 Local anesthetic: 5-10 mL

The saphenous nerve is the terminal sensory branch of the femoral nerve. It supplies innervation to the medial aspect of the leg down to the ankle and foot. Blockade of the nerve can be sufficient for superficial procedures in this area; however, it is most useful as a supplement to a sciatic block for foot and ankle procedures that involve the superficial structures in medial territory. The use of ultrasound guidance has improved the success rates of the saphenous blocks, compared with field blocks below the knee and blind transsartorial approaches. The ultrasound-guided techniques described here are relatively simple, quick to perform, and fairly reproducible.

A

Figure 2: (A) Transducer and needle position for a saphenous nerve block at the level of the midthigh. (B) Ultrasound anatomy demonstrating saphenous nerve (SaN) in the tissue plane between the sartorius muscle (SM) and vastus medialis muscle. (C) Cross-sectional anatomy of the saphenous nerve at the level of the thigh. Saphenous nerve is shown positioned between the SM and the vastus medialis muscle. In this example the sartorius nerve is positioned superficially to the femoral artery (FA) and vein (unlabeled oval structure posterior to the FA).

The sartorius muscle forms a "roof" over the adductor canal in the lower half of the thigh in its descent laterally-to-medially across the anterior thigh. The muscle appears as an oval shape beneath the subcutaneous layer of adipose tissue. Often, the femoral artery, which passes beneath the muscle, can also be palpated. The sides of the triangular canal are formed by the vastus medialis laterally and adductor longus or magnus medially (depending on how proximal or distal the scan is). The saphenous nerve is infrequently seen on the ultrasound image; however, sometimes it is visualized as a small round hyperechoic structure medial to the artery. A femoral vein accompanies the artery and saphenous nerve, which are all typically visualized at 2 to 3 cm depth. When attempting to identify the saphenous nerve on ultrasound image, the following anatomic considerations should be kept in mind:

Above the knee: The saphenous nerve pierces the fascia lata between the tendons of the sartorius and gracilis    muscles before becoming a subcutaneous nerve.

The saphenous nerve also may surface between the sartorius and vastus medialis muscles. (Figure 2 A, B, and    C).

Below the knee, the nerve passes along the tibial side of the leg, adjacent to the great saphenous vein    subcutaneously (Figure 3A, B, and C).

At the ankle, a branch of the nerve is located medially next to the subcutaneously positioned saphenous vein.

A

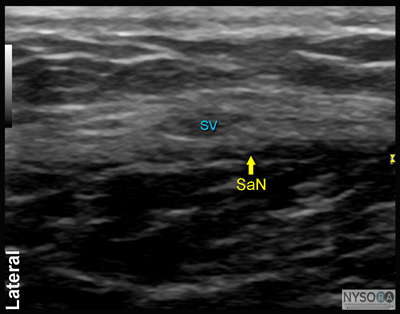

Figure 3: (A) Ultrasound transducer and needle insertion technique to block the saphenous nerve (SaN) at the levelof the tibial tuberosity. (B) Cross-sectional anatomy of the SaN at the level of the tibial tuberosity. (C) Ultrasound image of the saphenous nerve (SaN) at the level below the knee. SaN is seen in the immediate vicinity of the saphenous vein (SV). Transducer should be applied lightly to avoid compression of the saphenous vein (SV) because the vein serves as an important landmark for technique.

Saphenous nerve block results in anesthesia of a variable strip of skin on the medial leg and foot. Of note, although saphenous nerve is a strictly sensory block, an injection of the local anesthetic in the adductor canal can result in the partial motor block of the vastus medialis. For this reason, caution must be excercised when advising patients regarding the safety of unsupported ambulation after proximal saphenous block.

Equipment

Equipment needed includes the following:

Ultrasound machine with linear transducer (8-14 MHz), sterile sleeve, and gel

Standard nerve block tray

One 10-mL syringe containing local anesthetic

A 50-mm, 22-gauge short-bevel needle

Sterile gloves

Landmarks and Patient Positioning

The patient is placed in any position that allows for comfortable placement of the ultrasound transducer and needle advancement. Although prone and lateral approaches are possible, this block typically is performed with the patient in the supine position, with the thigh abducted and externally rotated to allow access to the medial thigh (Figure 2A). If difficulty confirming the sartorius muscle is encountered, exposure of the entire thigh in order to scan down from the anterosuperior iliac spine is useful.

With the patient in the proper position, the skin is dis- infected and the transducer is placed anteromedially, the artery is not immediately obvious, several maneuvers to identify it can be used, including color Doppler scanning to trace the femoral artery caudally from the inguinal crease. Once the femoral artery is identified, the needle is inserted in-plane in a lateral-to-medial orientation, and advanced toward the femoral artery (Figure 4A). If nerve stimulation is used (0.5 mA, 0.1 msec), the passage of the needle through the sartorius and/or adductor muscles and into the adductor canal is usually associated with the patient reporting a paresthesia in the saphenous nerve distribution. Once the needle tip is visualized medial to the artery and after careful aspiration, 1 to 2 mL of local anesthetic is injected to confirm the proper injection site (Figure 4B). When injection of the local anesthetic does not appear to result in its spread beside the femoral artery, additional needle repositions and injections may be necessary.

In an adult patient, usually 5 to 10 mL of local anesthetic is adequate for successful blockade. Because the saphenous nerve is a purely sensory nerve, high concentrations of local anesthetic are not required and in fact may delay patient ambulation should local anesthetic spread to one of the motor branches of the femoral nerve serving the quadriceps muscle.

Figure 4: (A) Simulated needle path (1) to reach the saphenous nerve (SaN) at the level of the midthigh. (B) Simulated needle path (1) and the distribution of the local anesthetic (area shaded in blue) to anesthetize the SaN at the midthigh level. SM, sartorius muscle; Vastus M, vastus medialus muscle. Femoral artery is not well seen in this image; it is positioned immediately posterior to SaN.
